Product and Specification

GAJ Technology's wireline and cable simulators, reproduce the characteristics of each pairs of CATx or xDSL wires, of various lengths, including insertion loss, return loss and impedance, based on international standards such as ANSI/TIA-568 (Commercial Building Telecommunications Cabling Standards) and ISO/IEC 11801 (Generic cabling for customer premises).

These are the perfect tools for quickly and inexpensively testing modems, DSLAMs, network cards or any device that uses CATx or xDSL cable and can provide proof of compliance for telecommunication equipment.

Our small "match box sized" simulators can be quickly daisy chained to simulate incremental lengths of CATx twisted pair cable.

GAJ Technology's ruggedly designed simulators are warranted against defects in workmanship. Warranty Details


CAT5/5e & CAT6 Cable Simulators

8‑wire Connection

CATx Module

12 Wirelines Rack Mount Case

24 Wirelines Rack Mount Case

Standard CAT5/5e and CAT6

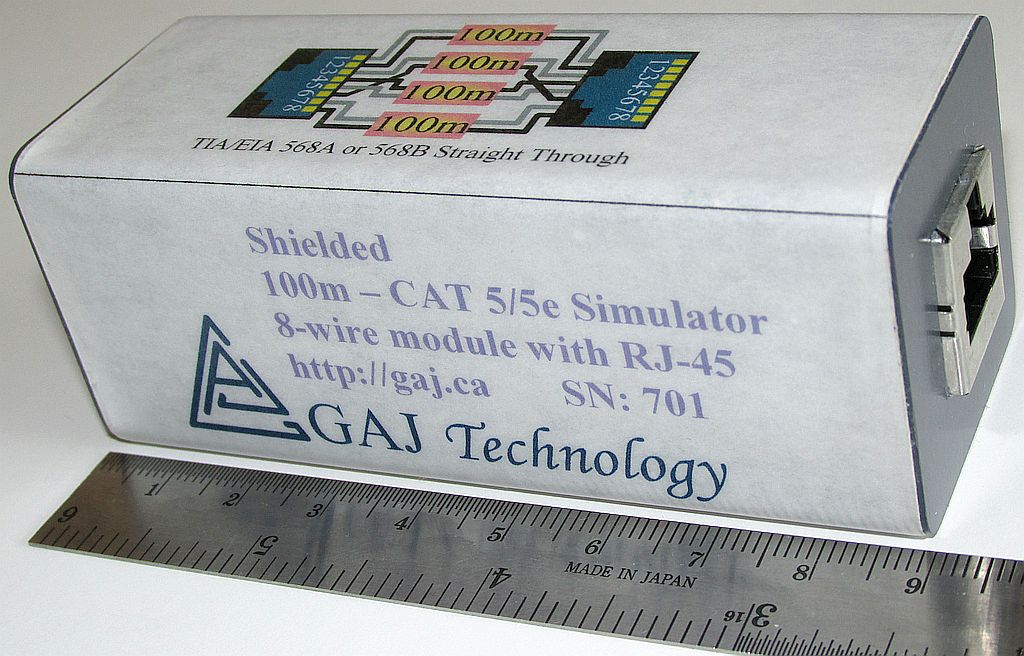

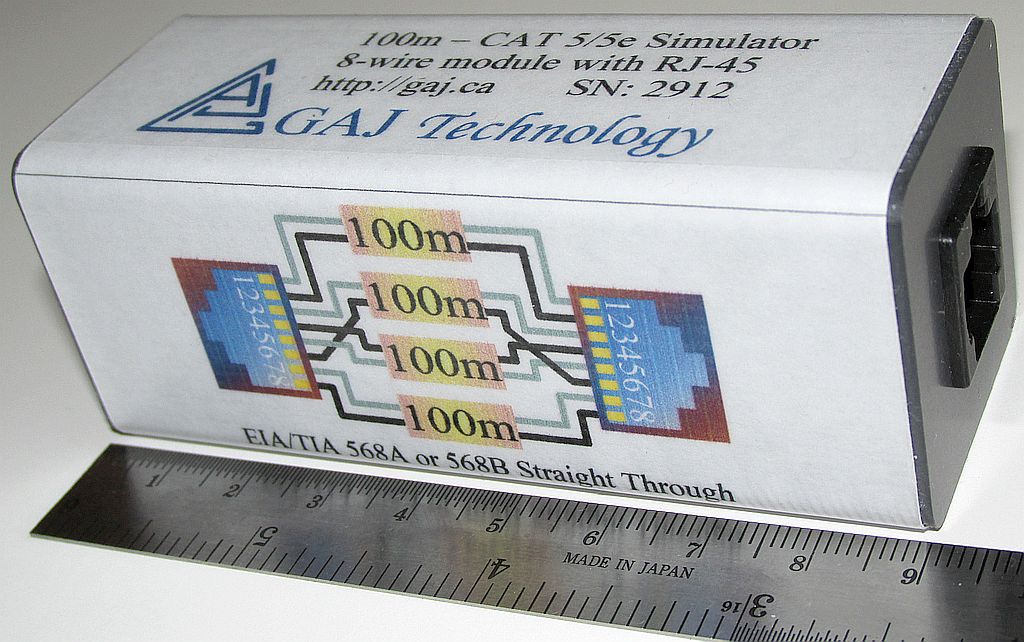

GAJ Technology's wireline simulator reproduce the characteristics of 4 pairs (8‑wire) of CAT5/5e or CAT6 network cable with an RJ‑45 connector at each end. The simulator can test any devices that use network cables such as routers, DSLAM, etc.

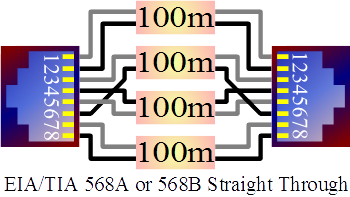

The pins of the RJ‑45 are connected according to the Ethernet 568A or 568B standards as shown in the figure at the left.

GAJ Technology's wireline simulators are available as:

  1 wireline module
     1 3/8" x 1 3/8" x 3.5"
     35mm x 35mm x 90mm

  12 wirelines rack mount case
     19" x 1.75" x 3.5"
     480mm x 45mm x 90mm
     12 ports at the front, 12 at the back

  24 wirelines rack mount case (CAT5/5e only)
     19" x 1.75" x 8"
     480mm x 45mm x 200mm

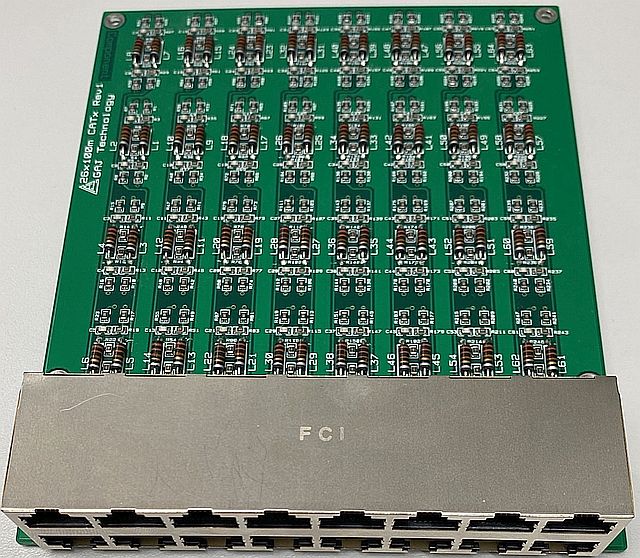

     all 48 ports at the front (8 wirelines PCB available)

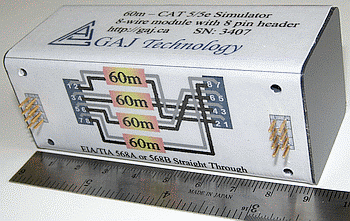

  1 wireline module PCB Mount
     1 3/8" x 1 3/8" x 3.5"
     35mm x 35mm x 90mm

The following gauges and lengths are available, please contact us for other models.

CAT 5/5e: 10, 20, 40, 80 and 100m
CAT 6: 10, 20, 40, 80 and 100m

See below for the response curves of CAT5/5e or CAT6.

Buy Now Module or Rack Mount Case or PCB Mount


PoE CAT5/5e & CAT6 Cable Simulators

8‑wire Connection

CATx Module

12 Wirelines Rack Mount Case

PoE CAT5/5e and CAT6

GAJ Technology's wireline simulator reproduce the characteristics of 4 pairs (8‑wire) of CAT5/5e or CAT6 network cable with an RJ‑45 connector at each end. The simulator can test any devices that use network cables such as routers, DSLAM, etc.

The pins of the RJ‑45 are connected according to the Ethernet 568A or 568B standards as shown in the figure at the left.

The PoE model complies with the IEEE 802.3af type 1, and can sustain 45mA per wire and 50V between each wire of a pair. Each pair is completely independent, so up to 180mA could be supplied to a powered device. For more details, please check our FAQ

GAJ Technology's wireline simulators are available as:

  1 wireline module
     1 3/8" x 1 3/8" x 3.5"
     35mm x 35mm x 90mm

  12 wirelines rack mount case
     19" x 1.75" x 3.5"
     480mm x 45mm x 90mm
     12 ports at the front, 12 at the back

The following gauges and lengths are available, please contact us for other models.

CAT 5/5e: 10, 20, 40, 80 and 100m
CAT 6: 10, 20, 40, 80 and 100m

See below for the response curves of CAT5/5e or CAT6.

Buy Now Module or Rack Mount Case


KITS

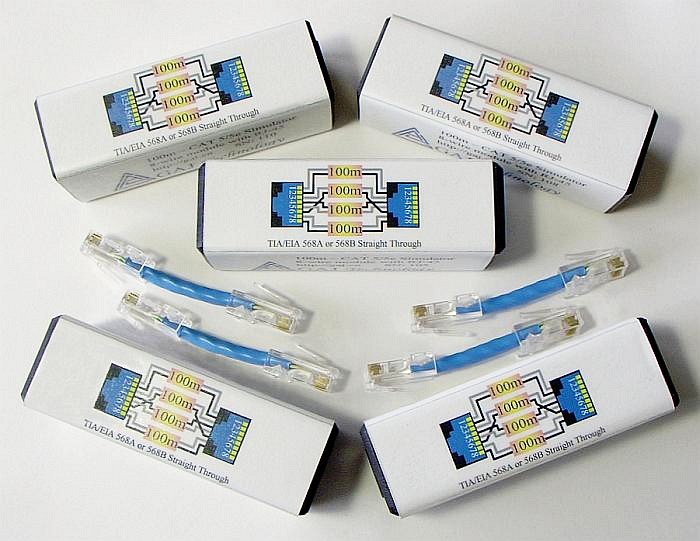

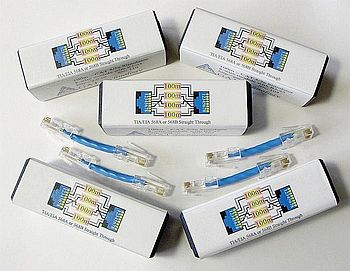

5 Module Kit

5 Module Kit

GAJ Technology's modules can be added together to simulate various lengths of cable. The 5 Module Kit includes 10m, 20m, 40m, 80m and 100 metre modules, and 4 patch cords. The kit can simulate 25 different lengths, from 10m to 250m, in the following gauges and lengths:

CAT 5/5e: 10, 20, 40, 80 and 100m
CAT 6: 10, 20, 40, 80 and 100m
Buy Now
Lengths [m]:
1
0

2
0

3
0

4
0

5
0

6
0

7
0

8
0

9
0
1
0
0
1
1
0
1
2
0
1
3
0
1
4
0
1
5
0
1
6
0
1
7
0
1
8
0
1
9
0
2
0
0
2
1
0
2
2
0
2
3
0
2
4
0
2
5
0
10m Module X X X X X X X X X X X X X
20m Module XX XX XX XX X X XX
40m Module XX XX XX XX XXXX
80m Module XX XXX XXXXX
100m Module X XXXXX XXXXX XXXXX

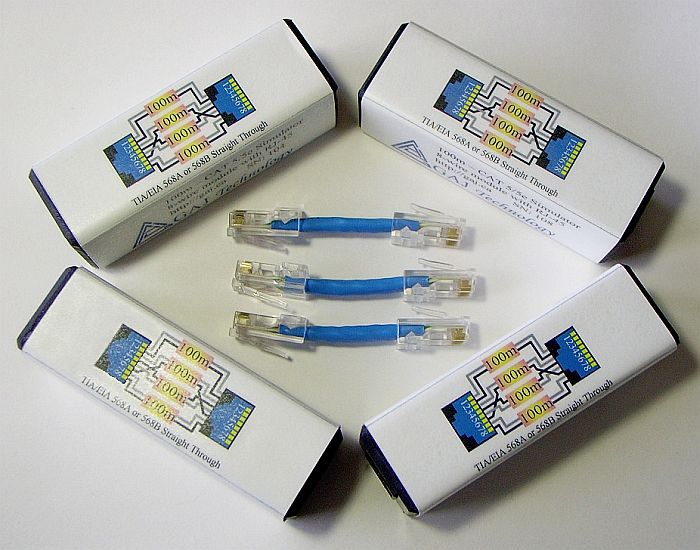

4 Module Kit

4 Module Kit

GAJ Technology's modules can be added together to simulate various lengths of cable. The 4 Module Kit includes 10m, 20m, 40m and 80 metre modules, and 3 patch cords. The kit can simulate 15 different lengths, from 10m to 150m, in the following gauges and lengths:

CAT 5/5e: 10, 20, 40, and 80m
CAT 6: 10, 20, 40, and 80m
Buy Now
Lengths [m]:
1
0

2
0

3
0

4
0

5
0

6
0

7
0

8
0

9
0
1
0
0
1
1
0
1
2
0
1
3
0
1
4
0
1
5
0
10m Module X X X X X X X X
20m Module XX XX X X XX
40m Module XX XX XXXX
80m Module XXX XXXXX

Loop Back

Loop Back Module
CAT 5/5e Simulator - 8‑wire with RJ‑45 Connectors

Loop back module with RJ‑45

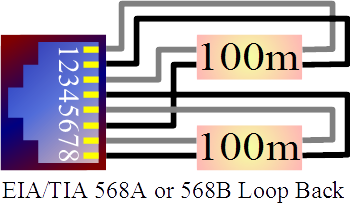

GAJ Technology's 8‑wire Loop back simulator can test the transmit and receive circuits of a single router.

The pins of the RJ‑45 are connected according to Ethernet 568A or 568B standards as shown in the figure at the left.

  Pinout:  1 ‑ 3   /   2 ‑ 6   /   4 ‑ 7   &   5 ‑ 8.

GAJ Technology's loop back simulator is available as a module with the following dimensions.

    Module: 1 3/8" x 1 3/8" x 3.5"
            35mm x 35mm x 90mm

The following gauges and lengths are available, please contact us for other models.

   CAT5/5e: 10, 20, 40, 80 and 100m
      CAT6: 10, 20, 40, 80 and 100m

See below for the response curves of CAT5/5e or CAT6

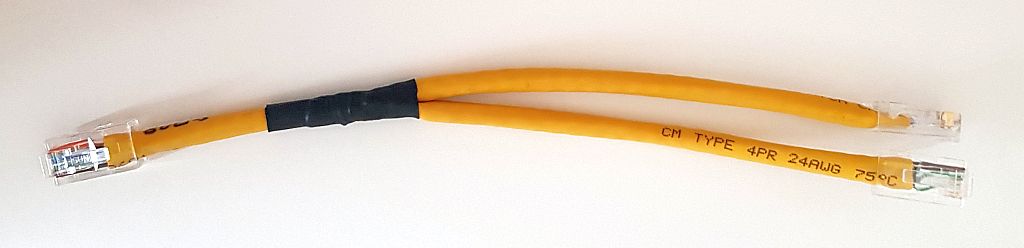

A Y-Cable is also available to connect the loop back module to two devices on pair 1 and 4, for other configuarion please contact us.

Buy Now


xDSL

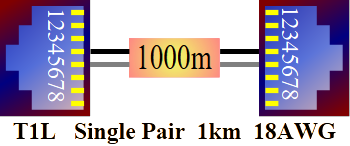

2‑wire xDSL Connections

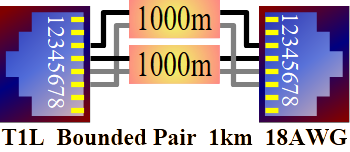

2‑wire xDSL Connections

2‑wire xDSL Connections

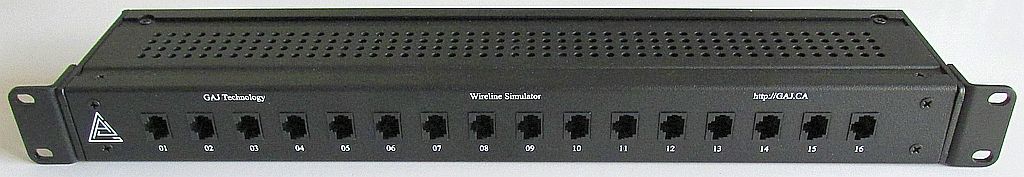

16 Wireline xDSL Rack Mount

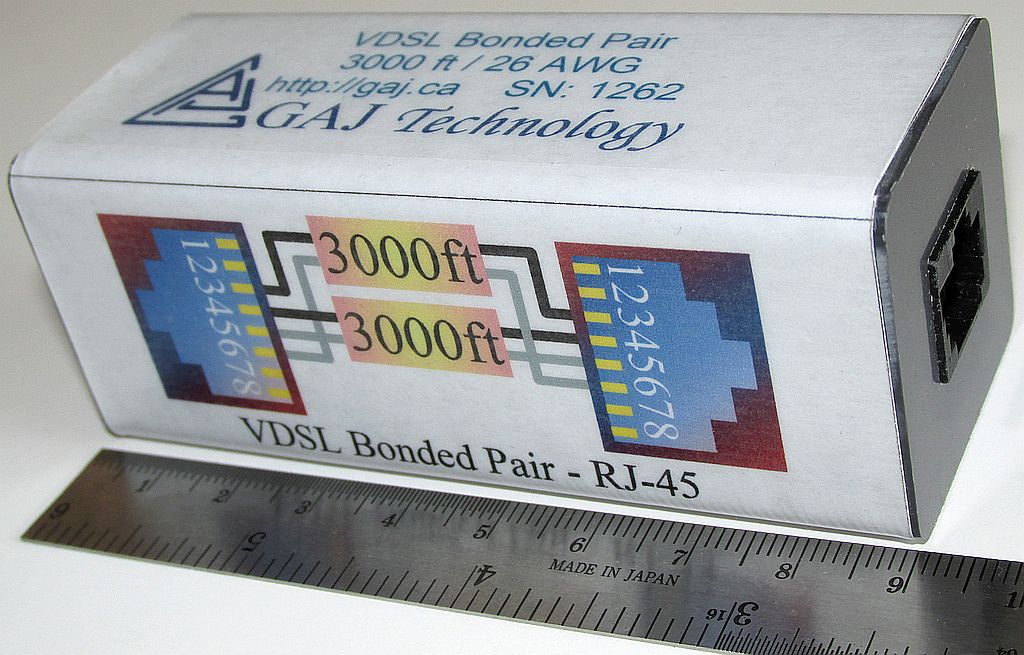

Single Pair & Bounded Pair xDSL with RJ‑45

GAJ Technology's wireline simulator reproduce the characteristics of one pairs (2‑wire) or two pairs (4‑wire) of 26 AWG cable. The RJ‑45 jacks at each ends can be used with either RJ‑11 or RJ‑45 plugs. The 2 or 4 wires simulator are connected as shown in the figure at the left.

GAJ Technology's wireline simulators supports any communication protocol, such as the VDSL Standard ITU G.993.1, which offers speeds of up to 52 Mbit/s downstream and 16 Mbit/s upstream, over a single flat untwisted or twisted pair of copper wires using the frequency band from 25 kHz to 12 MHz. The wireline simulator complies with ETSI/STC TM6(97)02, 970p02r3 cable reference models for simulating metallic access networks.

Available as individual modules or 16 wirelines rack mount case, in lenght of 2000ft of 3000ft, please contact us for other gauges and lengths.

See below for the response curves.

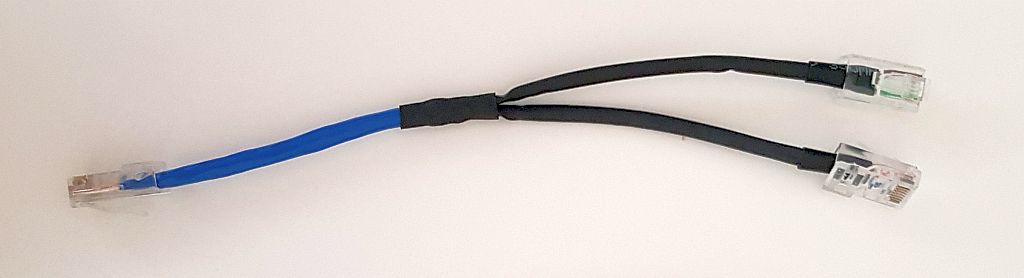

A Y-Cable is also available to connect the RJ-45 connector of the module to two devices using RJ-11, for other configuarion please contact us.

Buy Now Module or Rack Mount Case


Electrical Specifications

Click on any of the Graphs to get a larger View. The graphs assume a source impedance of 100 ohms. Connecting a device with a different impedance will affect the curve, as is the case with actual cable.

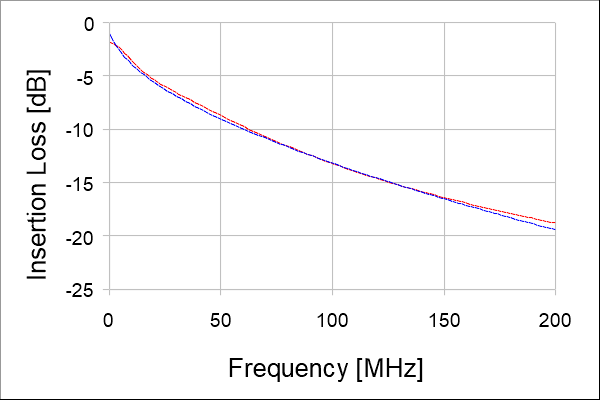

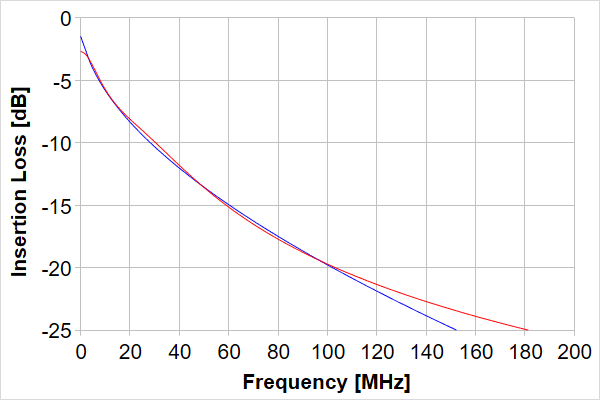

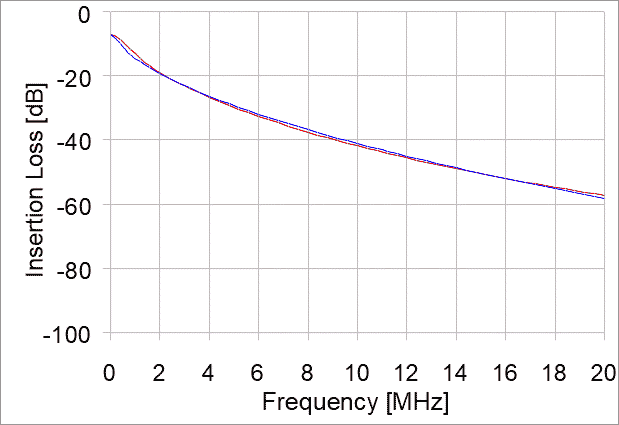

Insertion Loss

The insertion loss, also called attenuation, is the amount of signal loss by the insertion of the cable between the signal's source and the device under test. Doubling the length results in about twice the insertion loss.

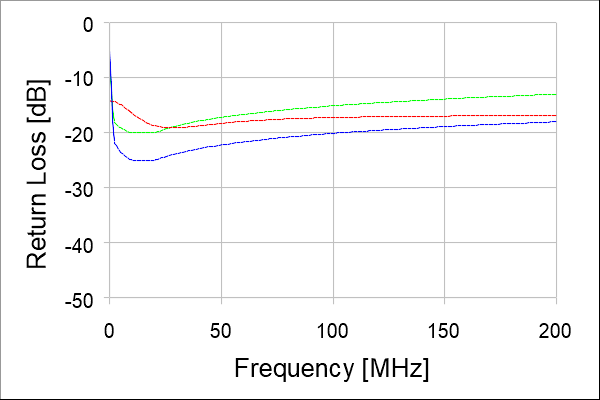

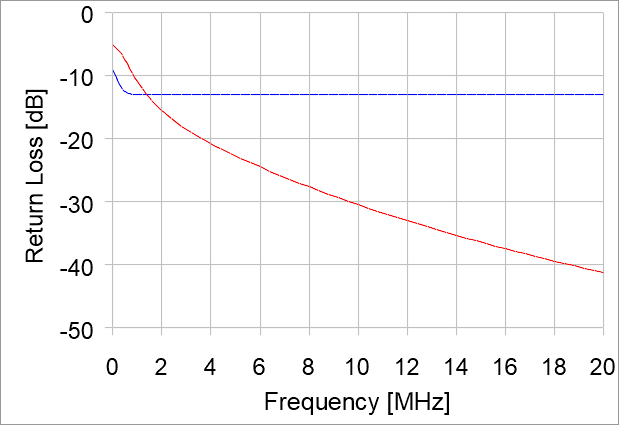

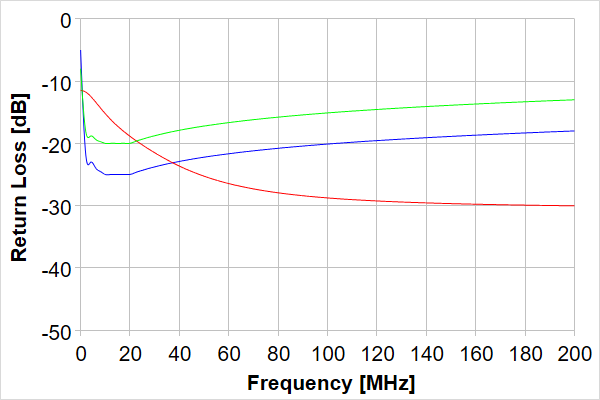

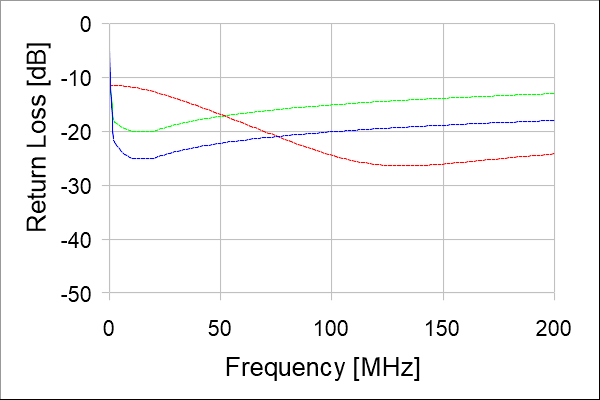

Return Loss

The return loss is the signal returned by the cable due to the impedance mismatch between the cable and the ideal 100 ohm impedance, which interferes with the desired signal from the remote end. This characteristic of real cable is simulated by GAJ Technology's simulators.

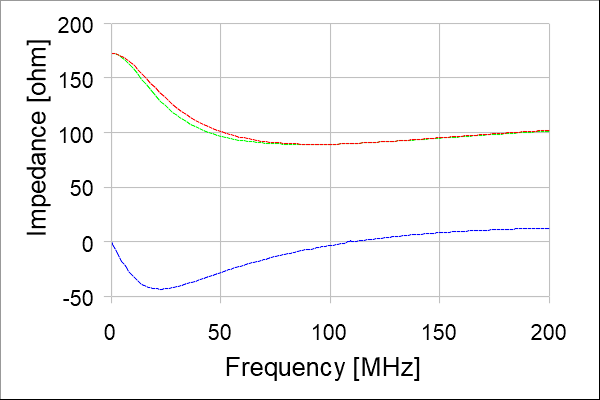

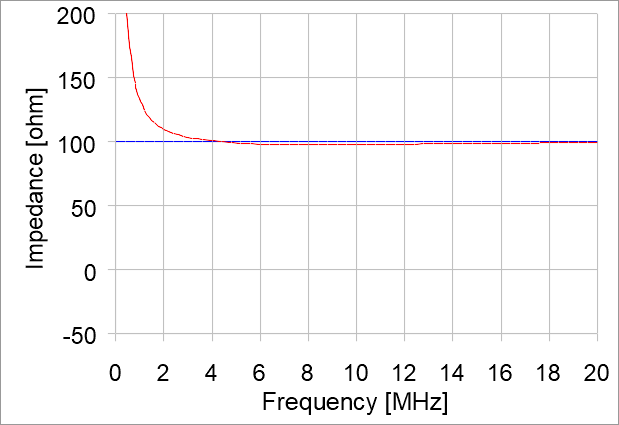

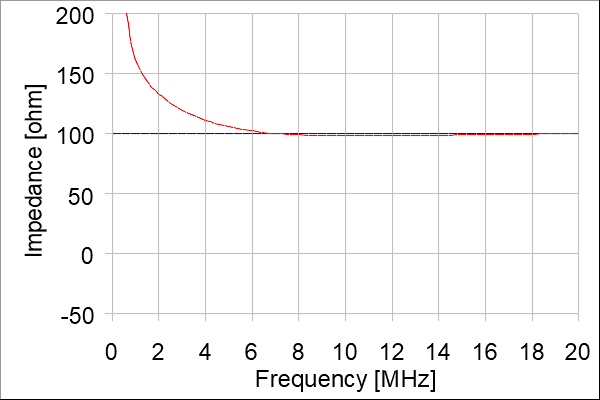

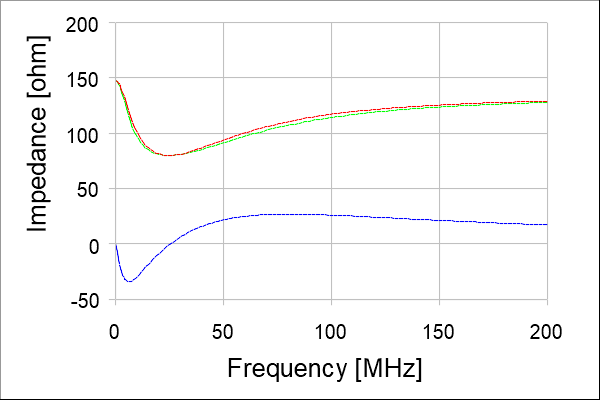

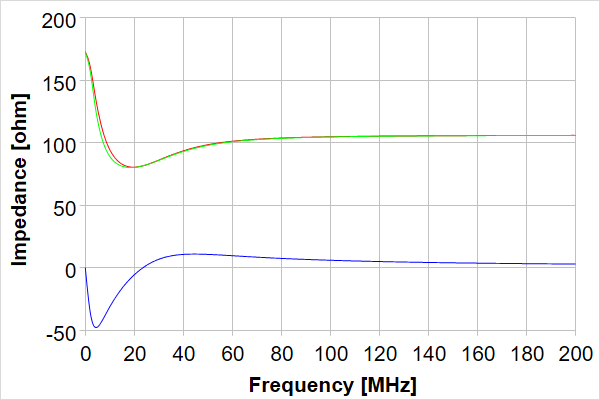

Impedance

The simulation includes both the real and imaginary part of the impedance.

 Red curve: Simulated
Blue Curve: Theoretical

   Red curve: Simulated
  Blue Curve: Theoretical CAT5e/6
Green curve: Theoretical CAT5

   Red curve: Simulated magnitude
  Blue Curve: Simulated imaginary part
Green curve: Simulated real part


CAT 5/5e - 10m, 20m, 40m, 80m, 100m and 125m

10m - CAT 5/5e Insertion Loss

CAT 5 - 10m Insertion Loss

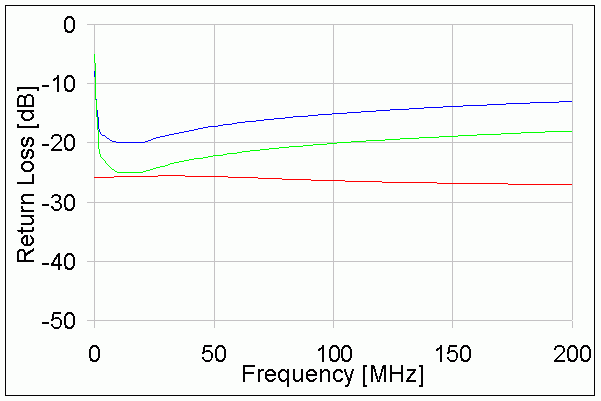

10m - CAT 5/5e Return Loss

CAT 5 - 10m Return Loss

10m - CAT 5/5e Impedance

CAT 5 - 10m Impedance

20m - CAT 5/5e Insertion Loss

CAT 5 - 20m Insertion Loss

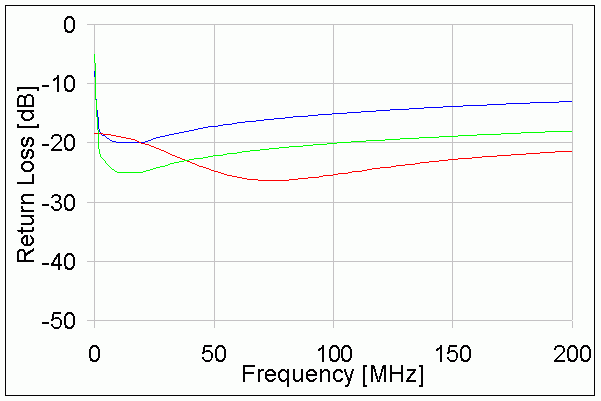

20m - CAT 5/5e Return Loss

CAT 5 - 20m Return Loss

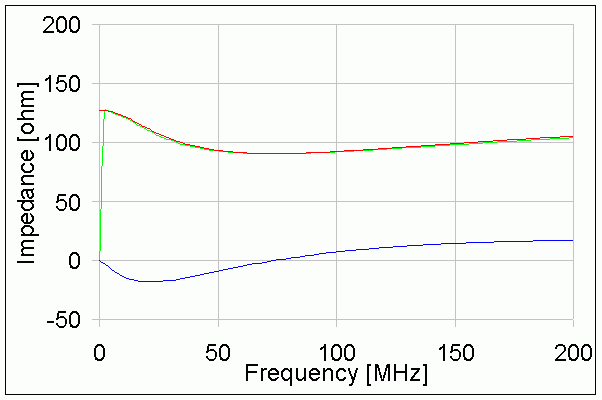

20m - CAT 5/5e Impedance

CAT 5 - 20m Impedance

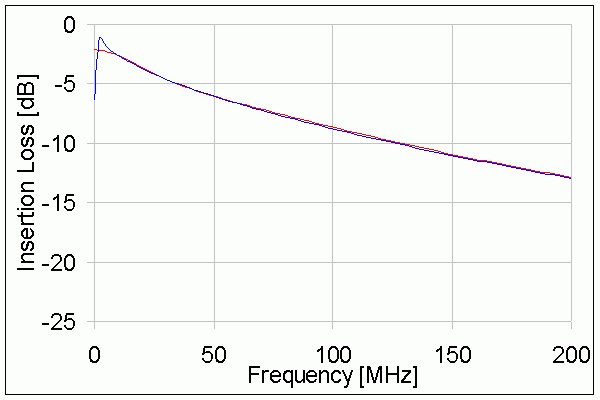

40m - CAT 5/5e Insertion Loss

CAT 5 - 40m Insertion Loss

40m - CAT 5/5e Return Loss

CAT 5 - 40m Return Loss

40m - CAT 5/5e Impedance

CAT 5 - 40m Impedance

80m - CAT 5/5e Insertion Loss

CAT 5 - 80m Insertion Loss

80m - CAT 5/5e Return Loss

CAT 5 - 80m Return Loss

80m - CAT 5/5e Impedance

CAT 5 - 80m Impedance

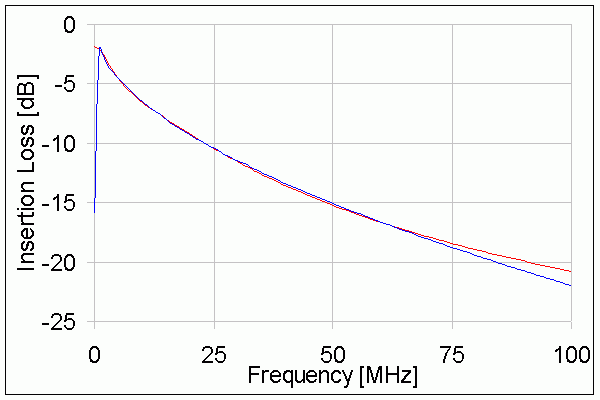

100m - CAT 5/5e Insertion Loss

CAT 5 - 100m Insertion Loss

100m - CAT 5/5e Return Loss

CAT 5 - 100m Return Loss

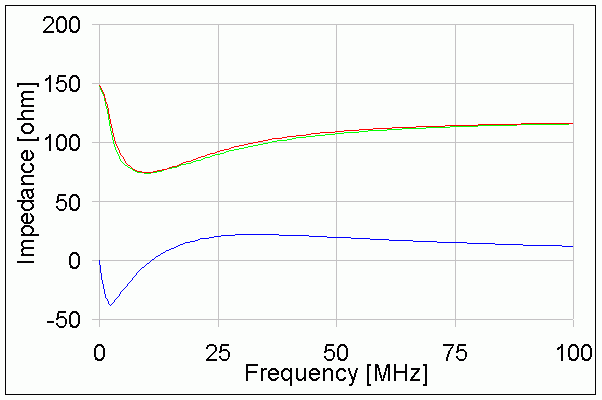

100m - CAT 5/5e Impedance

CAT 5 - 100m Impedance

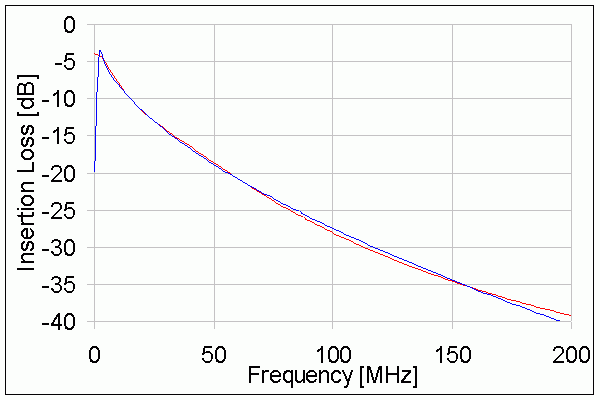

125m - CAT 5/5e Insertion Loss

CAT 5 - 125m Insertion Loss

125m - CAT 5/5e Return Loss

CAT 5 - 125m Return Loss

125m - CAT 5/5e Impedance

CAT 5 - 125m Impedance

CAT 6 - 10m, 20m, 40m, 80m and 100m

10m - CAT 6 Insertion Loss

10m - CAT 6 Insertion Loss

10m - CAT 6 Return Loss

10m - CAT 6 Return Loss

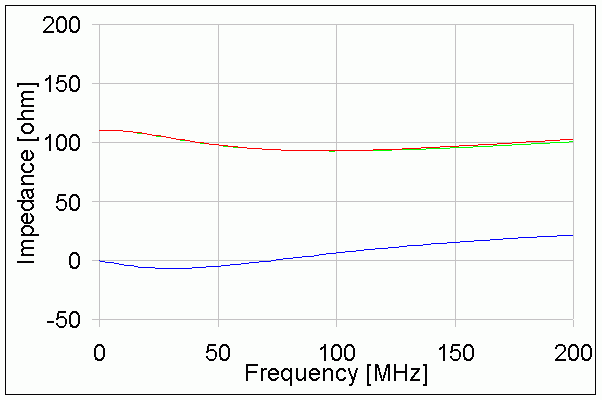

10m - CAT 6 Impedance

10m - CAT 6 Impedance

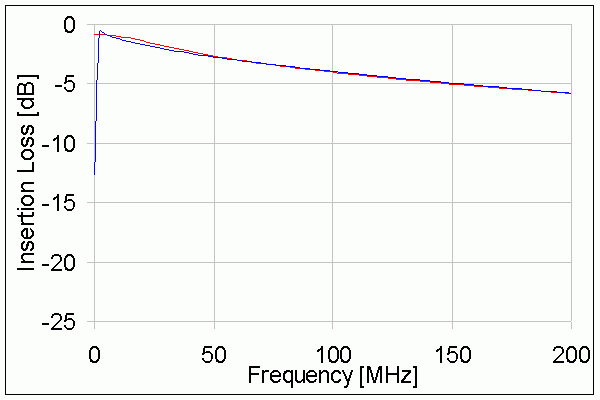

20m - CAT 6 Insertion Loss

20m - CAT 6 Insertion Loss

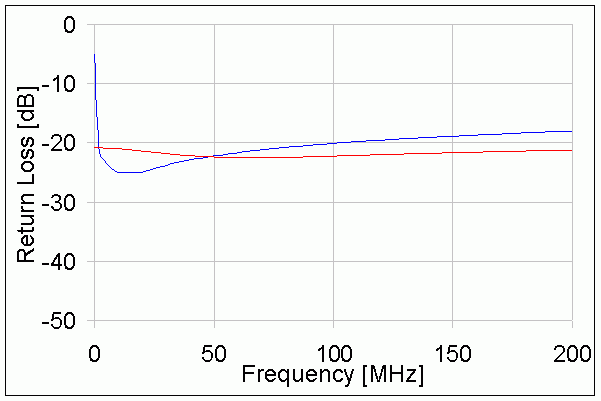

20m - CAT 6 Return Loss

20m - CAT 6 Return Loss

20m - CAT 6 Impedance

20m - CAT 6 Impedance

40m - CAT 6 Insertion Loss

40m - CAT 6 Insertion Loss

40m - CAT 6 Return Loss

40m - CAT 6 Return Loss

40m - CAT 6 Impedance

40m - CAT 6 Impedance

80m - CAT 6 Insertion Loss

80m - CAT 6 Insertion Loss

80m - CAT 6 Return Loss

80m - CAT 6 Return Loss

80m - CAT 6 Impedance

80m - CAT 6 Impedance

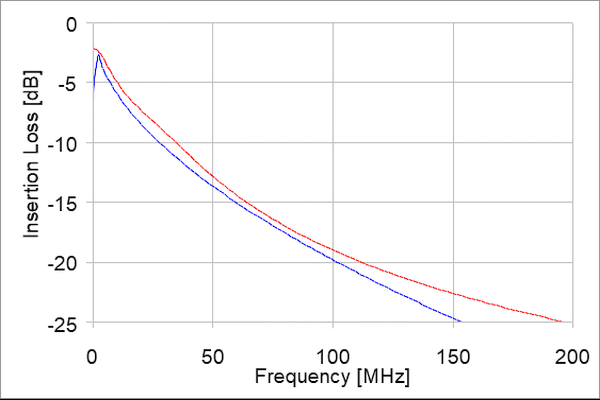

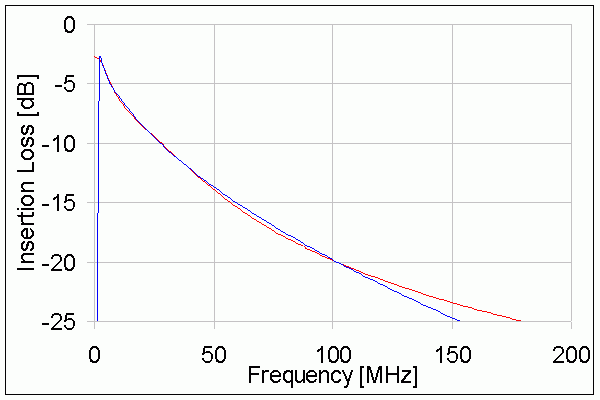

100m - CAT 6 Insertion Loss

100m - CAT 6 Insertion Loss

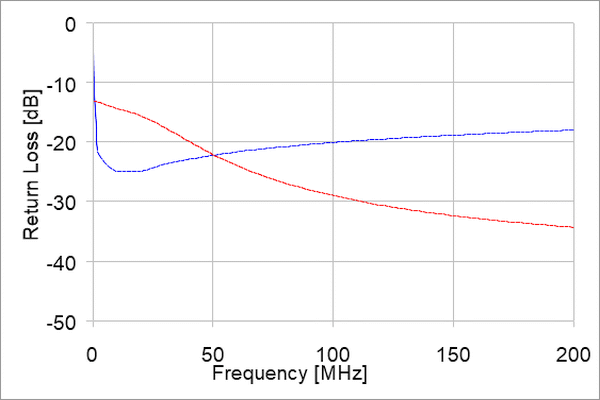

100m - CAT 6 Return Loss

100m - CAT 6 Return Loss

100m - CAT 6 Impedance

100m - CAT 6 Impedance

3000ft - xDSL 26AWG

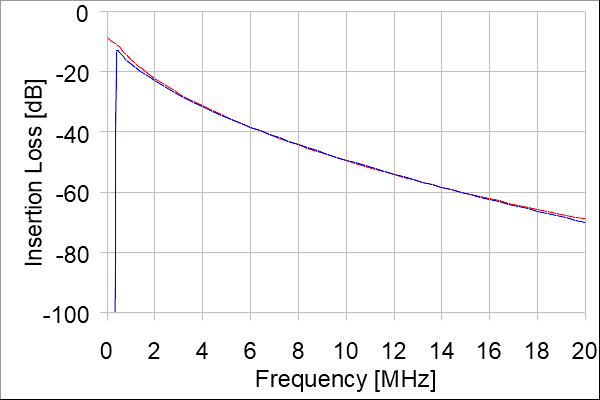

Insertion Loss

RJ‑45, 3000ft - VDSL Insertion Loss

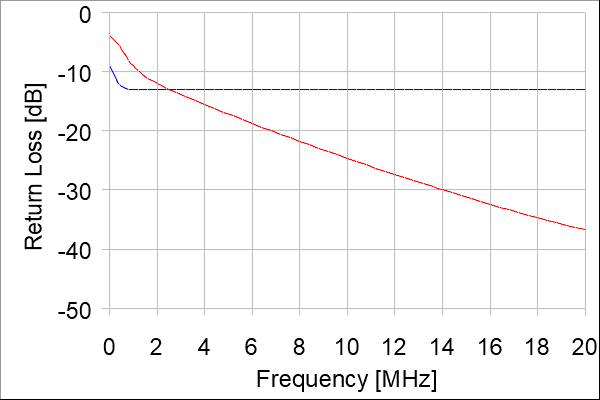

Return Loss

3000ft - VDSL Return Loss

Impedance

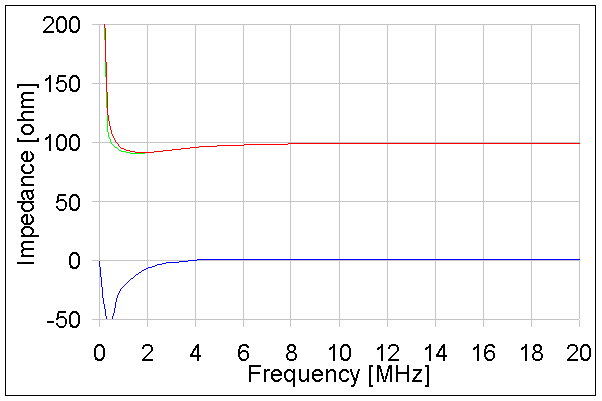

3000ft - VDSL Impedance

Graphs are for illustration purposes only - Curves for Individual modules shown E&OE!
